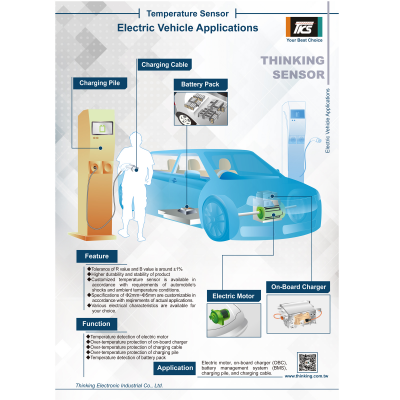

Temperature Sensor for Electric Vehicles
Thinking Electronic's Electric Vehicle temperature sensor can be used in a number of applications associated with the electric vehicle.
Applications
- Electric Motor
- On-Board Charger (OBC)
- Battery Management System (BMS)
- Charging Pile
- Charging Cable
Features
- Tolerance of R value and B value is around ±1%
- Higher product stability and durability
- Customisation of temperature sensor is available in accordance with requirements of vehicle's shocks and ambient temperature conditions
- Specifications of Φ2mm~Φ5mm are customisable in accordance with requirements of actual applications
- Various electrical characteristics are available
Function
- Temperature detection of electric motor
- Over-temperature protection of on-board charger
- Over-temperature protection of charging cable
- Over-temperature protection of charging pile
- Temperature detection of battery pack

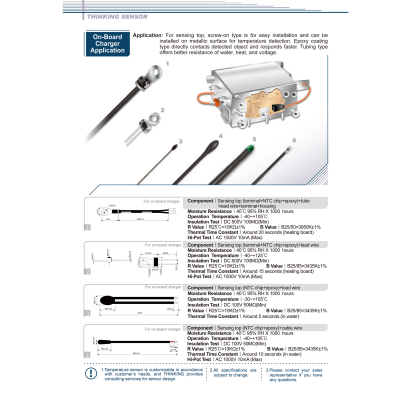

On-Board Charger Application
The Screw-on type sensing top allows for easy installation and can be installed on metallic surface for temperature detection.
The Epoxy coating type directly contacts the detected object and responds faster.
The Tubing type offers better resistance of water, heat, and voltage.
See image 2 in our gallery for specifications of the products available for this application.

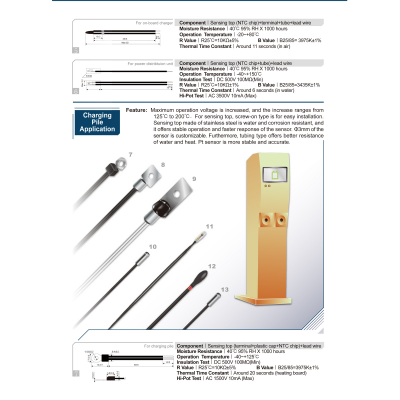

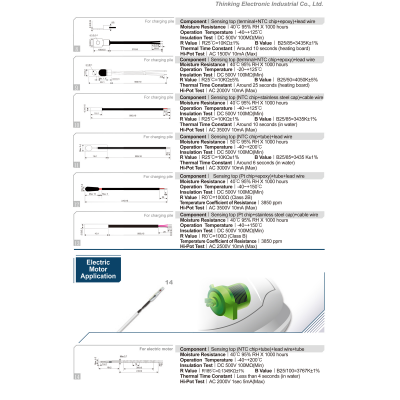

Charging Pile Application
For using this temperature sensor within the charging pile the maximum operation voltage is increased, and the increase ranges from 125℃ to 200℃.
The screw-on type sensing top allows for easy installation.
The sensing top, made of stainless steel, is water and corrosion resistant, and offers stable operation and faster sensor response. Φ3mm of the sensor is customisable.
Furthermore, the tubing type offers better water and heat resistance and the PT sensor offers more accurate temperature detection and better product stability.
See image 3 in our gallery for specifications of the products available for this application.

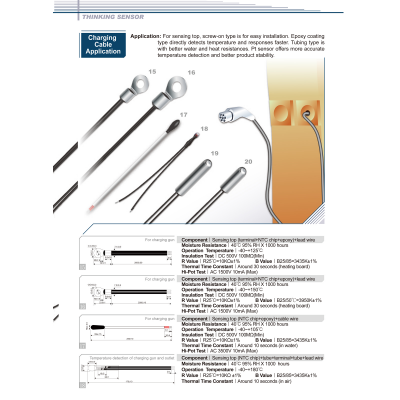

Charging Cable Application
The screw-on type sensing top allows for easy installation.
The Epoxy coating type directly detects temperature and responses faster.
The Tubing type offers better water and heat resistance and the PT sensor offers more accurate temperature detection and better product stability.
See image 5 in our gallery for specifications of the products available for this application.

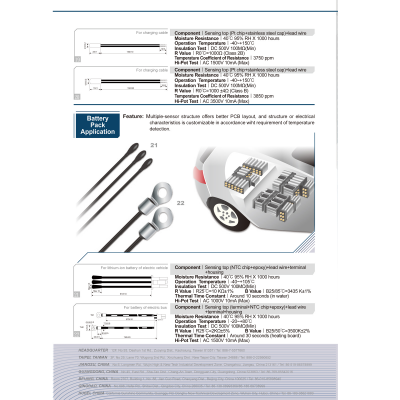

Battery Pack Application
Multiple-sensor structure offers better PCB layout and the structure or the electrical characteristics are customisable in accordance with the requirement for temperature detection.
See image 6 in our gallery for specifications of the products available for this application.
